2021 new wood pellet machine
8th Generation Centrifugal Wood Pellet Machine
High Productivity Patented Product
Model Number:XGJ560
Power:90kw,132kw,160kw
Raw Material Proce:Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalks...
Output (kg/h):1500 - 2000 kg/h
Voltage:3phases, 380V ,50hz
Dimension(L*W*H):2600x1300x2300mm
Certification:CE, ISO
Place of Origin:Shandong, China
| Model | Power(kw) | Capacity(t/h) |
|---|---|---|
| XGJ560 | 90,132,160 | 1-1.5,1.5-2,2-2.5 |
| XGJ850 | 250 | 3-4 |
Advantages of our pellet machine
1.The wood pellet machine is mainly composed of four parts: pellet mill, the lubricating oil pump, the dust removal and the electric control cabinet. 2.The power is 132KW, capacity is 1.5-2tons/hr. The motor is directly connected to
the gear box to increase the conversion rate of kinetic energy and improve production efficiency.
Technical advantages of pellet machine gearbox
The gear box adopts three-stage gear deceleration, the carrying capacity is 5 times
larger than the old model, and the service life is super long.The bearings of gear shafts are adjustable structure.The bearing can be adjusted without unloading the machine after long-term running of wear.The gearbox comes with a lubricating cooling system, it can cool down the lubricating oil without stopping the machine to ensure long-term operation.
The gearbox lubrication system is equipped with flow detection and over-pressure protection, which can prevent equipment failures caused by poor lubrication effectively.
New feed system
The external setting of the material dial completely solves the
problem that the dial material system is easily corroded by high temperature steam. It is a major innovation of the eighth generation wood pellet machine. In the material shifting cover, except for the material shifting turntable, other non-moving parts in contact with materials and steam are all made of stainless steel, which solves the corrosion problem of metal materials fundamentally.
Mould and pressure roller
1.Core component-ring die: It is made of wear-resistant stainless steel material,
quenched in a vacuum furnace, and the die has uniform hardness, no breakage, and super wear-resistant; the die holes are processed by high-speed gun drilling, the holes are evenly arranged, and the inside of the holes is smooth.
2.The core component-roller: the roller adopts super wear-resistant alloy welding process, instead of the past surface carburizing treatment. Long life span, while realizing the protection of the ring die.
2.The core component-roller: the roller adopts super wear-resistant alloy welding process, instead of the past surface carburizing treatment. Long life span, while realizing the protection of the ring die.
This is our main equipment wood pellet machine. This is our XGJ560 model.Power supply is 132KW, the capacity is 1.5-2ton/hr. We also have XGJ850 pellet machine model Power supply is 250KW, the capacity is 3-4ton/hr. You can choose one model according to your needs.
For more questions about the pellet mill, please leave a message or send an email.
Elastomer
GERMAN STANDARD FLEXIBLE COUPLING COMPENSATE THE RUNOUT OF THE MOTOR AND THE L-AXIS TO REDUCE THE IMPACT ON THE GEAR .....
Air cooling system
LUBRICATION SYSTEM: AL ARM FOR ABNORMAL LUBRICATION, OVERPRESSURE PROTECTION, ENVIRONMENTALLY FRIENDLY AND EFFICIENT WIND ......
principal axis
SPINDLE: USE 45# STEEL PRECISION CASTING, AFTER ROUGH MACHINING, QUENCHING AND TEMPERING HEAT TREATMENT, INCREASE ......
the whole frame
The XGJ centrifugal high-efficiency granulator is made of high-alloy wear-resistant materials. It has the characteristics of unique design, reasonable structure......

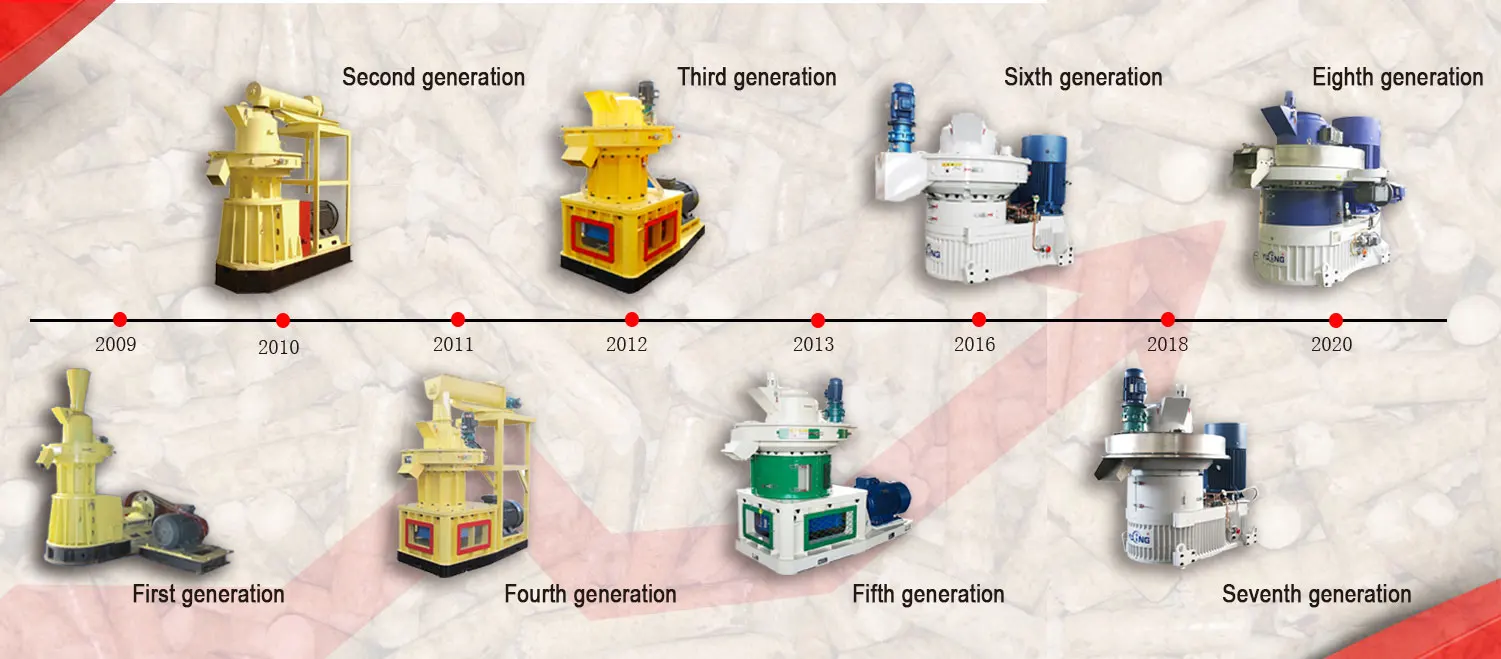

Development History of Wood Pellet Machine
The centrifugal high-efficiency pellet machine originated from Yulong, and has undergone many core technology improvements and functional improvements since its development in 2010.
Production Advantage
Strict quality management system+High quaility raw materials+Precise processing equipment=High quality pellet machine.Pelelt Machine Base
Super high machining accuracyThe main shaft of the pellet machine
The main shaft is thickened by 15%Roller of pellet machine
The surface of the pressure roller adopts robot surfacing welding wear-resistant materials, which greatly improves the life of the roller.Pellet machine ring die
High wear-resistant stainless steel material, vacuum quenching, ultra-high-speed gun drilling, high-quality hole finish. ULaser Cutting
The cutting surface of the laser cutting machine is smooth: the cutting surface has no burrs, and the surface roughness of the incision is generally controlled within Ra6.5.Product Testing
Three-coordinate detector, gear monitoring center, spectrometer, metallographic microscope, high-precision hardness tester...You May Like
Feed Pellet Machine
Pellet Line Case
- The production line of wood pellets with an hourly output of 6 tons. The customer's raw materials are waste wood boards and various wood waste materials.The production line uses twoXGJ850 wood pellet machines, and one XGJ850 has an output of 3.5 tons per hour.
